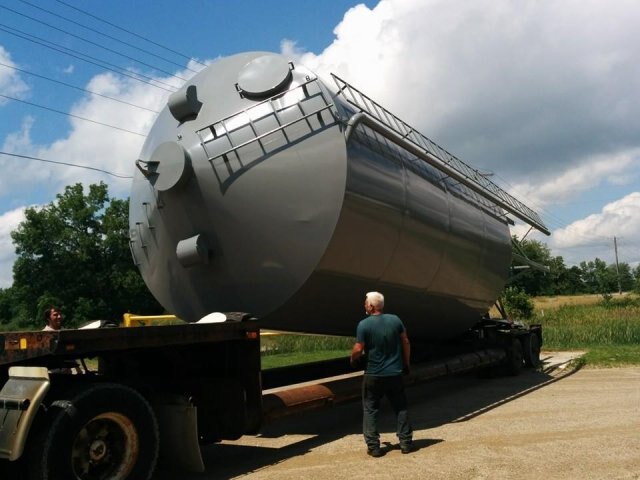

Smith Steel Bulk Tank

  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
  • Smith Steel Bulk Tank
Call for Price
 Get a Quote  Get Financed  Value a Trade  Book a Demo   Get Directions  Print
Overview

Agricultural Silos

Smith Steel & Fabrication’s Agricultural line of silos are designed for the storage of both dry and wet bulk products such as corn, soybeans, wheat, grain, oats, and soybean meal.

Order one of our standard models with a variety of options to choose from. All tanks are customizable and can be painted in a color of your choice.
  Features
  • All welded weatherproof construction
  • Choice of 45 degree or 60 degree cone
  • Choice of 12 or 14 foot diameter
  • Smooth wall construction enabling total clean out
  • 10 or 12 gauge steel to support loading of up to 60 lbs/ft3
  • 36” clearance under the hopper outlet
  • Exterior welded ladder on side and top
  • Top spring loaded lid
  • Top hinged manway
  • Painted in your choice of colour
  • Delivery and set up available

MODEL CAPACITY IN CUBIC FEET CAPACITY IN BUSHELS SIZE
1205-45 875 704 12’ x 16.5’
1210-45 1441 1158 12’ x 21.5’
1215-45 2006 1613 12’ x 26.5’
1220-45 2572 2067 12’ x 31.5’
1225-45 3137 2522 12’ x 36.5’
1405-45 1280 1029 14’ x 18’
1410-45 2050 1648 14’ x 23’
1415-45 2819 2266 14’ x 28’
1420-45 3589 2885 14’ x 33’
1425-45 4359 3504 14’ x 38’
1205-60 1055 848 12’ x 21’
1210-60 1621 1303 12’ x 26’
1215-60 2186 1757 12’ x 31’
1220-60 2752 2212 12’ x 36’
1225-60 3317 2667 12’ x 41’
1405-60 1566 1259 14’ x 23’
1410-60 2336 1878 14’ x 28’
1415-60 3106 2497 14’ x 33’
1420-60 3875 3115 14’ x 38’
1425-60 4645 3734 14’ x 43’

SUPERSOY Standard Features and Benefits

  • Made with a 60 degree cone and specifically designed for soybean meal and other difficult products:
  • The Centre installed antidynamic tube helps reduce bridging
  • Includes top gooseneck venting.
  • Specifically designed for soybean meal and other difficult products.
  • Comes with all the Standard Superstore Features plus:
    • Centre installed antidynamic tube to help prevent bridging
    • Top gooseneck venting

SUPERSEED Standard Features and Benefits

  • Made with a 45 degree cone and specifically designed for delicate loading of seeds or beans
  • Includes a bean ladder on interior with plain or rubber coated paddles which can be side or centre installation
  • Specifically designed for the delicate loading of seeds or beans
  • Comes with all the Standard Superstore Features plus:
    • Quality bean/seed ladder (plain or rubber coated paddles) side or centre mounted inside silo
    • Cone Access Panel
    • Roller Slide Gate

https://www.smithsteel.ca/images/bulk-feed.png

BULK FEED TANK Standard Features

  • 53 degree side draw cone for even flow
  • Fabricated from 14 gauge mild steel
  • Continuous welding seams lock moisture out
  • Smooth wall construction allows for easy total clean out
  • Solid welded safety ladder for safer access to top lid
  • 30” clearance under the hopper outlet
  • Top vented manway
  • Painted in your choice of colour

Model

CAPACITY

 SIZE WEIGHT (EMPTY)
  Cu/Ft Tonnes
702-53 205 3.7 7’  x 14’ 1150
704-53 280 5.0 7’  x 16’ 1240
708-53 429 7.8 7’  x 20’ 1540
712-53 578 10.5 7’  x 24’ 1840
716-53 727 13.2 7’  x 28’ 2140
720-53 876 15.9 7’  x 32’ 2600
724-53 1025 18.6 7’  x 36’ 2975
912-53 1063 19.3 9’  x 27.5’ 2900
916-53 1317 23.9 9’  x 31.5’ 3300

FEED FACTORY Standard Features

  • 10’3” square separated into four equally sized compartments
  • Each compartment comes complete with a cyclone, blow pipe, vented manway, hopper outlet and 4” hopper side valve
  • Hopper bottom has a 57° slope and six feet of clearance
  • Completed with a bottom man door, lifting lugs and outside ladder
  • Combines efficient feed storage and preparation

SIZE HEIGHT TO EAVE CAPACITY IN Cu/Ft
15 tonne 19.00 feet 850
24 tonne 23.75 feet 1325
32 tonne 28.50 feet 1800
41 tonne 33.25 feet 2275
49 tonne 38.00 feet 2750
58 tonne 42.75 feet 3325



Specifications
Model
Bulk Tank
Year
2017
Sale Type
New
Manufacturer
SmithCo
